Cable Restraint Cover
It is important to remove the cable restraint cover before plugging the cables in to the control box.
Failing to remove the Cable Restraint Cover from the control box may cause damage or inadequate connection of cables. The improper connection between the cables and the control box may lead to insufficient power supply to the motors and the adjustable bed may not perform as required.
To remove the cable restraint cover, please follow the instruction below:

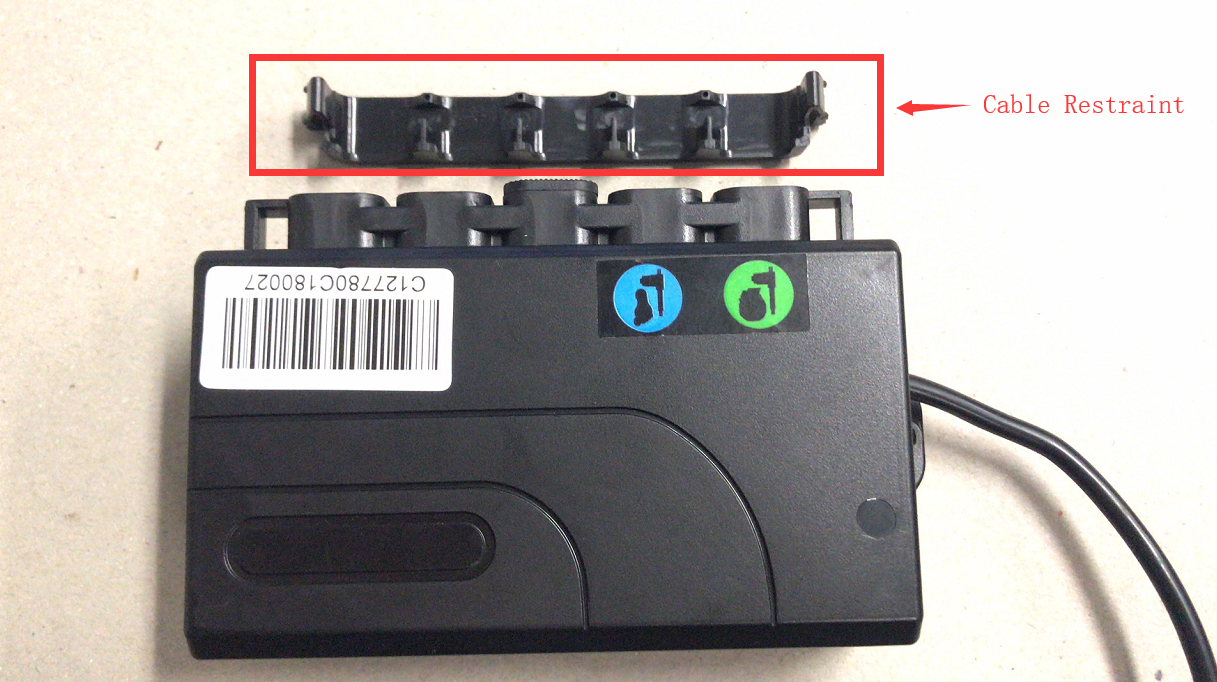

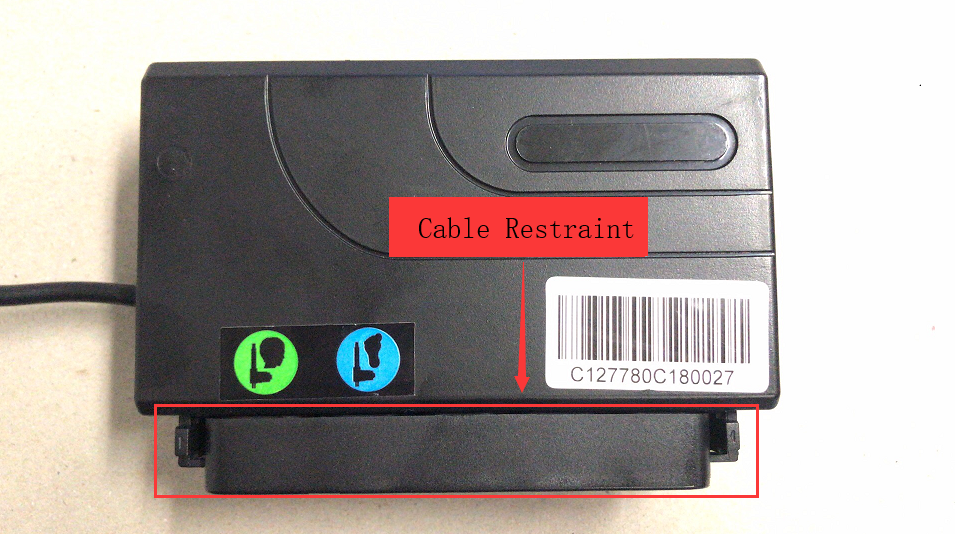

1. The Cable Restraint Cover in located on the side of the control box (pictured below).

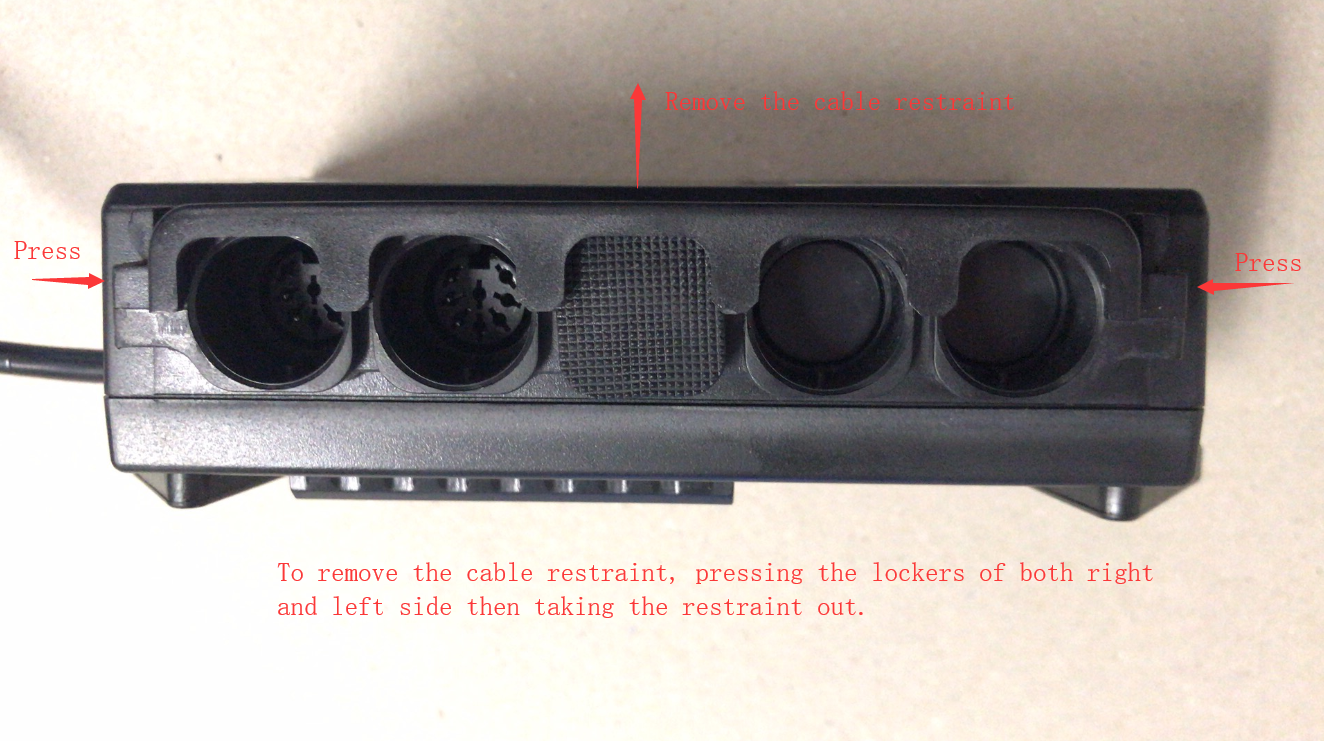

2. To remove the Cable Restraint Cover, you will need to press the TABS at both ends of the control box cable box. Gently remove the Cable Restraint Cover, to allow cables to be connected correctly.
3. After removing cable restraint cover, you are now ready to connect the cables into the control box properly. Please ensure each cable is connected to the correct plug location and is secured correctly.
